Polishing Series

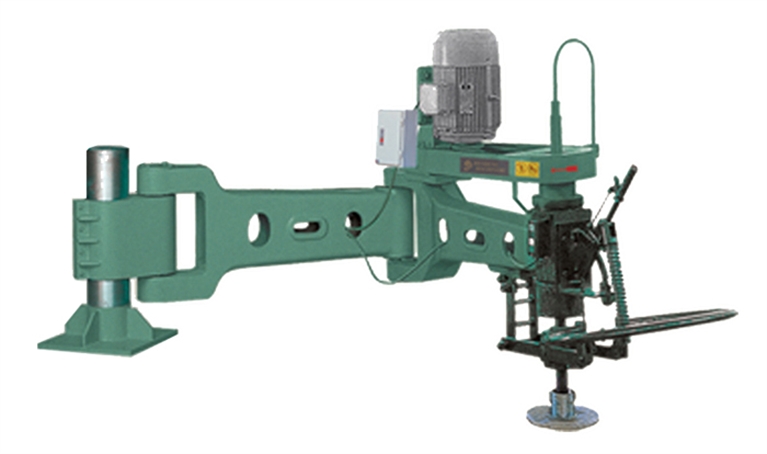

HSM-MD240
Swing type polisher
TECHNICAL PARAMETERS
Diameter of polishing touch
ø240mm
Work scope
3000mm*1200mm
Revolving speed of principal axis
850r/min
crosswise:1.5:2000
Allowed height difference of wheel head
lengthwise:1.0:1000
Vertical:1:1000
Length of triangle conveyer belt
1550mm(B Type)
Power of Main Motor
5.5kw(1440r/min)
Water consumption
1m3/h
Gross weight
1000kg
Machine Dimension(LxWxH)
2200mm*700mm*1000mm
